Pipe Supports
> Download PDF Brochure (49.1 KB) |
Stainless Steel

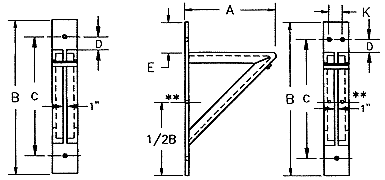

Medium Knee Bracket
Figure 98
Service:
To support loads up to 1500 pounds close to walls provides adjustment to and from the wall.
Material:
304/316 Stainless steel and various alloys.
Ordering:
Specify bracket number, type of material. | | |
|
 |
| Size |
A |
B |
C |
D |
E |
Plate
Size |
Angle
Size |
Hole
Size |
0
1
2 |
12
18
24 |
18
24
30 |
15-1/2
21-1/2
27-1/23 |
1-1/4
1-1/4
1-1/4 |
2-1/2
2-1/2
2-1/2 |
4
5
5 |
1-1/2x1/4
1-3/4x3/16
2x1/4 |
13/16
13/16
13/16 | | |
|
|
|
