Stainless Steel

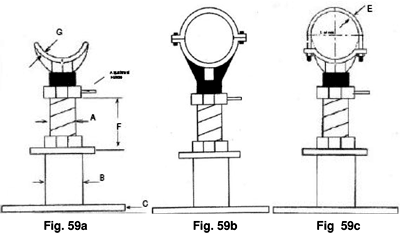

Stanchion Saddle Support
Figures 59a, 59b, 59c


Service:
Support pipe low to ground.

Material:
304/316 Stainless steel and various alloys.

Ordering:
Specify figure number, standard or ductile iron pipe, size of pipe, distance from center line to the concrete and adjustable or stationary.

Note:
The "F" dimension can be modified to meet any specific application requirements.

Each unit has an adjustment handle that can be used to level pipe installations without removal.



Pipe Size Vertical
Adjustment
(F)

Thread
Diameter
(A)

Pipe
Diameter
(B)


Base
(C)

Hole
Diameter
(D)

U-Bolt
(E)
Stock
Size
(G)
2
3
4
6
8
10
12
14
16
18
20
24
30
36
42
48
6
6
6
6
6
6
6
8
8
10
10
10
10
10
10
10
1
1
1
1-1/2
1-1/2
1-1/2
1-1/2
2
2
2
2
2
2-1/2
2-1/2
3
3
2
2-1/2
2-1/2
2-1/2
3
3
3
4
4
4
4
6
6
6
8
10
1/4x6x6
1/4x6x6
1/4x6x6
1/4x6x6
3/8x9x9
3/8x9x9
3/8x11x11
3/8x11x11
3/8x13x13
3/8x13x13
3/8x13x13
3/8x13x13
3/8x18x18
3/8x18x18
1/2x24x24
1/2x24x24

9/16
9/16
9/16
9/16
11/16
11/16
13/16
13/16
13/16
13/16
13/16
13/16
1-1/8
1-1/8
1-1/8
1-1/8

3/8
3/8
1/2
1/2
1/2
5/8
3/4
3/4
7/8
7/8
1
1
1
1
1
1
3/16x2-1/2
3/16x2-1/2
3/16x2-1/2
1/4x3
1/4x3
1/4x3
1/4x3
3/8x4
3/8x4
3/8x4
3/8x4
3/8x4
1/2x5
1/2x5
5/8x6
5/8x6
